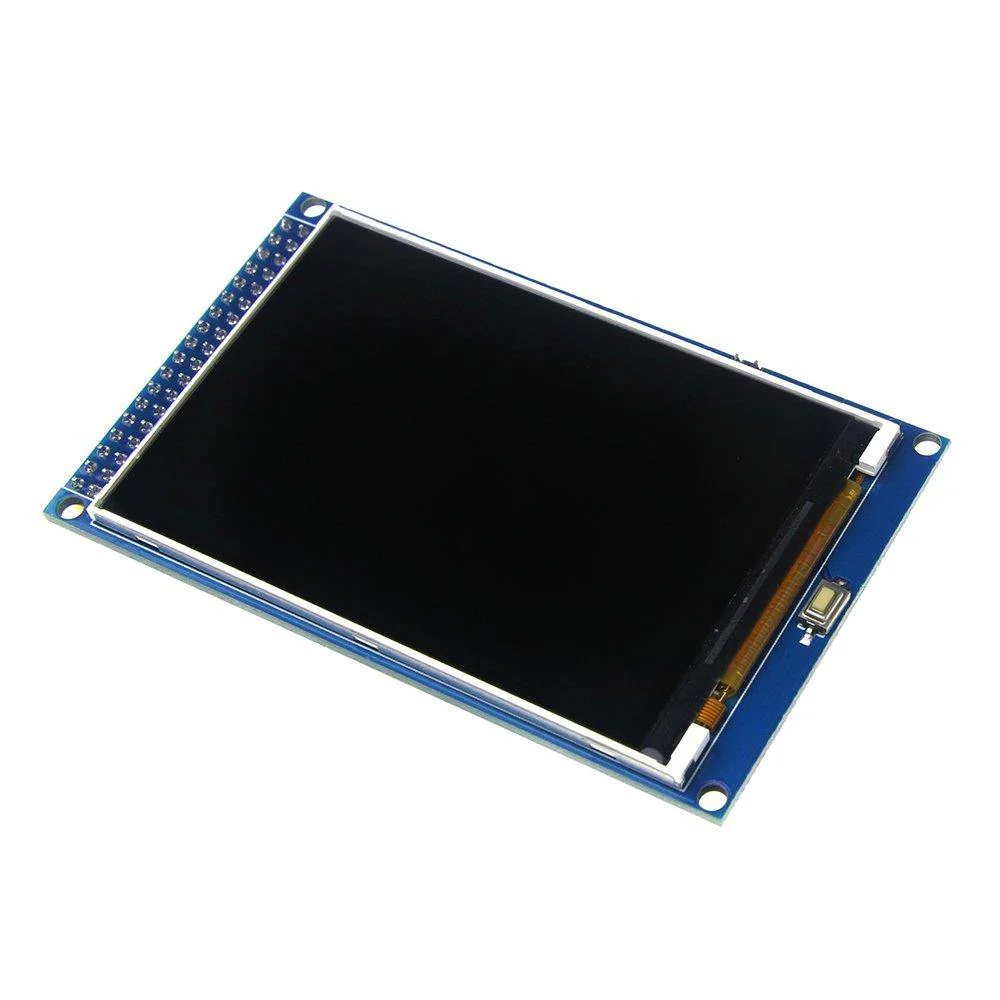

• This is the 3.2in TFT LCD Display Shield for Arduino
• This TFT display is a 3.2″ TFT LCD Screen Module designed for board compatible with arduino.
• The LCD display is features a 240RGB x 320-dot resolution capable with real 262,144 display color.
• This LCD display shield supports MVA (Multi-domain Vertical Alignment) wide view display.
• The Power saving functions: 8-color mode, standby mode, sleep mode

3.2in TFT LCD Display Shield for Arduino

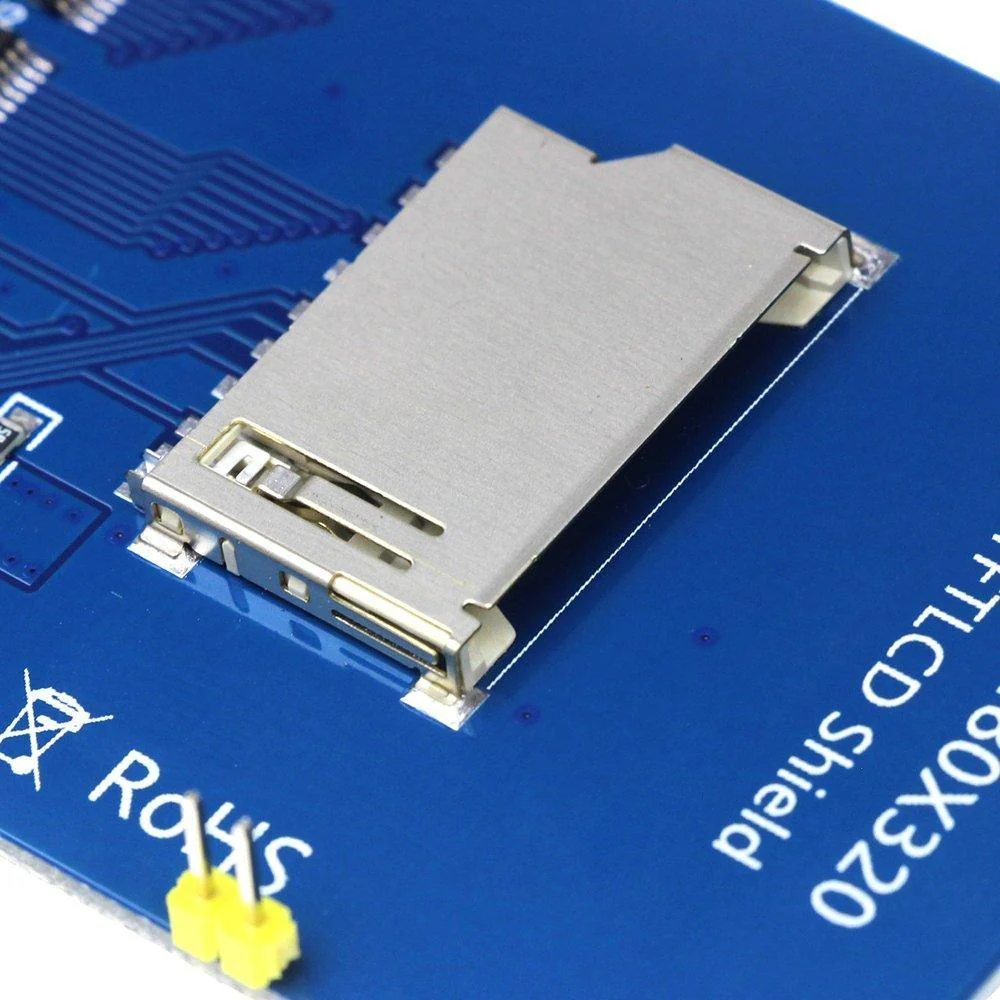

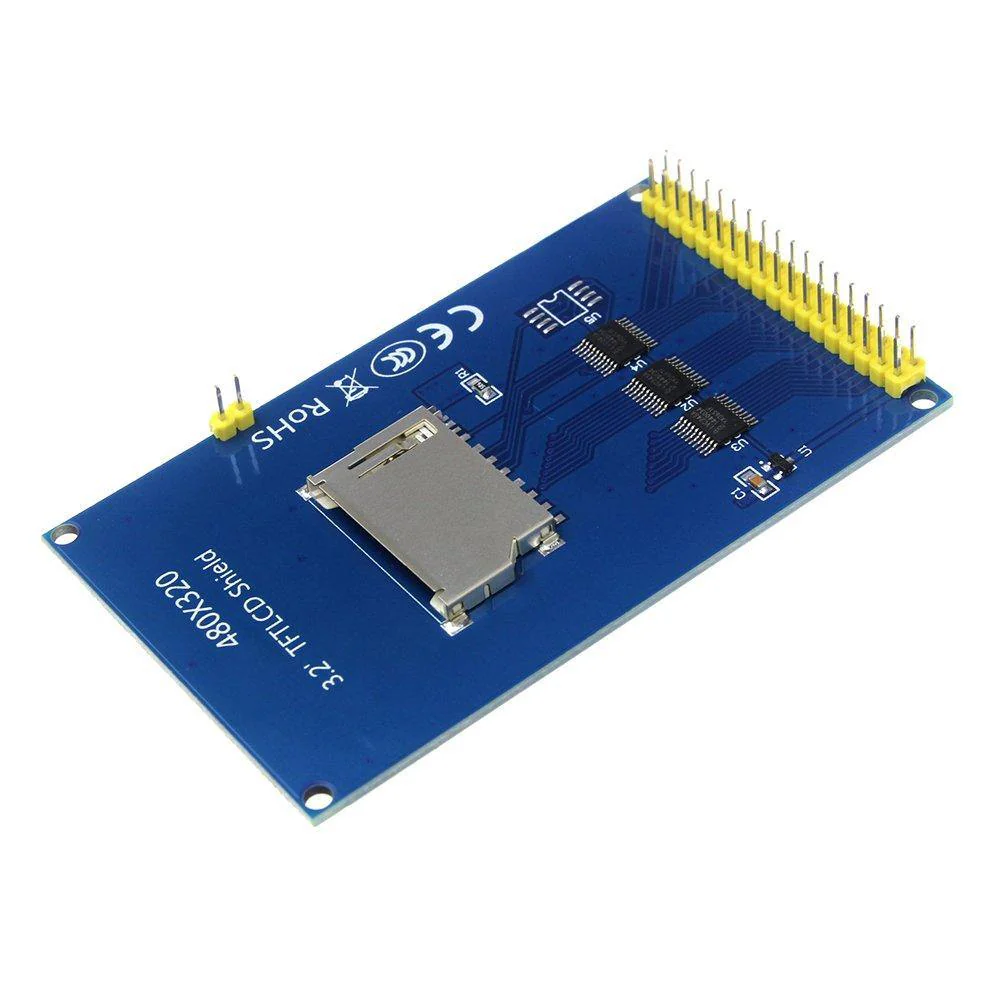

The 3.2 TFT LCD display shield compatible with arduino is a powerful interface and is equipped with an SD card reader. It’s powerful features allow multifunctional abilities for your projects.  The TFT LCD display is also user friendly as it helps the users with wiring. You can easily just plug the LCD display onto the Mega Board compatible with Arduino.

Precautions while using the 3.2in TFT LCD Display Shield

The control and driving circuit of TFT modules is low voltage and FRIDA micro-power CMOS circuit, can be easily damaged by static, static damage is an irreparable damage, and sometimes human have hundreds of volts of high voltage static electricity, therefore, in handling, assembling and use should be extremely careful to prevent static electricity:

• Using soldering iron or power FRIDA tools must be well grounded and operation, make them without leakage.
• Do not use hand to touch the leads, circuit boards and metal boxes.
• Do not use a vacuum cleaner for cleaning, because it generates strong static electricity;
• When the air is dry, can also generate static electricity, therefore, workshop humidity shall be above RH60%.
• If it is necessary to direct contact it , should enable the human body in the same potential with the modules ,or make human body be well grounded.
• Remove or back in the bags or move locations, also need to be careful to prevent static electricity.
• Don’t replace or discard the original packing. Electrostatic damage or man-made damage is not within the scope of the warranty.

Features:

• 3.2-inch TFT LCD: Provides a clear and vibrant display.
• 320×240 Resolution: High resolution for detailed visuals.
• SD Card Slot: Enables storage and display of images or data.
• Compatible with Arduino Boards: Works with various Arduino boards like Arduino Mega and Due.
• Easy Integration: Designed to stack on top of Arduino boards easily.
• Wide Viewing Angle: Ensures good visibility from different angles.
• Backlight Control: Adjustable backlight for better visibility in different lighting conditions.

Applications:

• Personal digital assistants
• Portable instruments
• Point-of-sale terminals
• Pagers
• Cellular phones
• Weather monitoring system

Package included:

• 1 x 3.2 inch TFT LCD display module

Specifications:
