• This is the Nano Development Board compatible with Arduino
• It has an operating voltage of 5V
• Comes with soldered connectors and 8 analog input ports: A0 ~ A7
• Includes 14 Digital input/output ports: TX, RX, D2 ~ D13
• Compatible with Arduino using Atmel ATmega328P-AU MCU
• Ideal Nano compatible board for Arduino projects in IoT, robotics, and automation
• Compact and efficient, making it the best Arduino Nano board for electronics prototyping
• Based on reliable Arduino Nano clone specs and pinout for consistent performance

Note: User need to download CH341S64.SYS driver and use it with old bootloader settings in the arduino IDE.

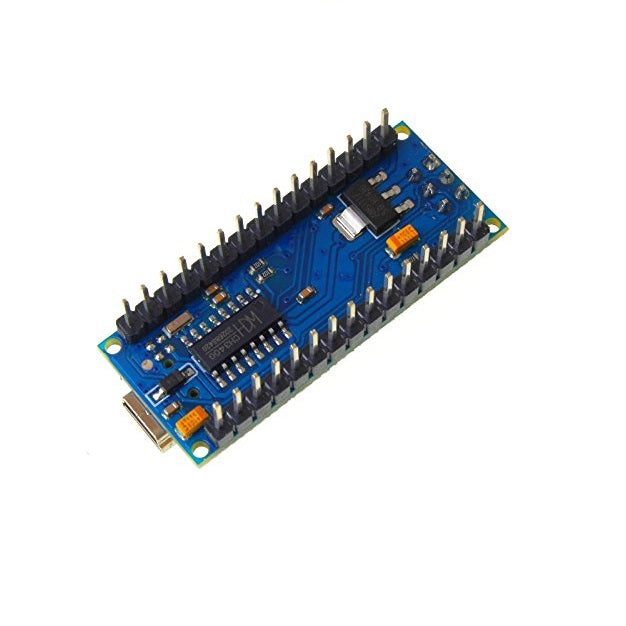

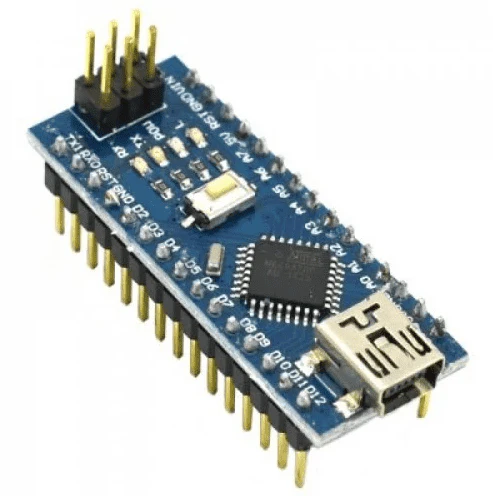

Arduino Nano R3 Development Board Compatible with Arduino

The CH340 Soldered Arduino Nano Board R3 chipboard is based on the famous Arduino platform and does all the functions of Uno but with a smaller footprint, making it a best Arduino Nano board for electronics prototyping in compact projects.

The Nano board compatible with Arduino equips a low-cost USB-Serial Chip that makes it reliable and suitable for projects based around Arduino. This Nano compatible board for Arduino projects is widely used in IoT, robotics, and embedded systems due to its efficiency and compact size. The Arduino Nano WiFi microcontroller board for IoT & home automation is a small, complete, and breadboard-friendly board based on the ATmega328.

The CH340 Arduino Nano Atmega328 microcontroller board can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected as the highest voltage source, making it convenient for flexible applications. If you’re planning to buy Arduino Nano microcontroller board online India, this board offers excellent reliability at an affordable cost.

The size of Arduino Nano V3.0 with CH340 Chip is only 43 mm x 18 mm. It comes with 6 PWM I/O from a total of 14 digital I/O, 8 analog inputs, 16MHz clock speed, and 32kB of flash memory. These Arduino Nano clone specs and pinout make it suitable for a wide range of electronics and embedded applications.

Note: The user needs to download CH341S64.SYS driver and use it with old bootloader settings in the Arduino IDE.

Why Choose This Nano Board?

This Nano board stands out as a best Arduino Nano board for electronics prototyping due to its compact design, cost-effectiveness, and ease of integration. Whether you are building IoT devices, robotics systems, or sensor-based applications, this Nano compatible board for Arduino projects delivers consistent performance.

If you’re checking the Arduino Nano development board price in India, this variant offers excellent value for money without compromising on essential features. For makers and students looking to buy Arduino Nano microcontroller board online India, this is a reliable and widely trusted option.

Key Features:

• Based on the Arduino platform, compatible with Arduino Uno but with a smaller footprint.
• Equipped with a CH340 USB-Serial Chip for reliability.
• Powered via mini-USB connection, 6-20V unregulated external power supply, or 5V regulated external power supply.
• Features 6 PWM I/O and 22 digital I/O pins.
• Provides 8 analog inputs.
• Operates at a clock speed of 16MHz with 32KB flash memory.
• Supports node-to-node communication on LoRa with Nano and ESP32.
• Requires downloading CH341S64.SYS driver and using old bootloader settings in Arduino IDE.
• Compatible with Nano 328P Expansion Adapter Breakout Board IO Shield for expanded access to pins.
• Designed as a best Arduino Nano board for electronics prototyping with stable performance
• Widely used as a Nano compatible board for Arduino projects in real-world applications

Package Includes:

• 1 x Arduino Nano R3 Board compatible
• 30 x Soldered Pins

Specifications:

Specifications:

Analog I/O Pins

Specifications:

8

Specifications:

Architecture

Specifications:

AVR

Specifications:

Clock Speed

Specifications:

16 MHz

Specifications:

Colour

Specifications:

Blue

Specifications:

DC Current per I/O Pin

Specifications:

40 mA

Specifications:

Digital I/O Pins

Specifications:

22

Specifications:

EEPROM

Specifications:

1KB

Specifications:

Flash Memory

Specifications:

32 KB of which 2 KB used by the bootloader

Specifications:

Input Voltage(Recommended)

Specifications:

7-12 V

Specifications:

Microcontroller

Specifications:

ATmega328

Specifications:

Operating Voltage

Specifications:

5

Specifications:

Power Consumption

Specifications:

19 mA

Specifications:

PWM Output Pins

Specifications:

6

Specifications:

SRAM

Specifications:

2KB

Specifications:

Weight (gm)

Specifications:

8g

Specifications:

Shipment Weight

Specifications:

0.105 kg

Specifications:

Shipment Dimensions

Specifications:

6 × 5 × 3 cm
