• Versatile Recording: The VS1053 MP3 Shield offers onboard recording and playback of various music formats, supporting OGG encoding.
• Audio Playback: It features a headphone and stereo output, delivering high-quality sound.
• Recording Capability: Equipped with an onboard microphone, it allows you to record audio effortlessly.
• Line-in Input: The shield includes a line-in input interface for flexible audio connections.
• Dual Jacks: It offers separate 3.5mm jacks for both microphone and speaker for added convenience.
• Power Indicator: The onboard power indicator keeps you informed about its status.
• Stable Voltage: With 3.3V and 2.8V LDO chip AMS-1117, it provides a stable current of up to 800mA.

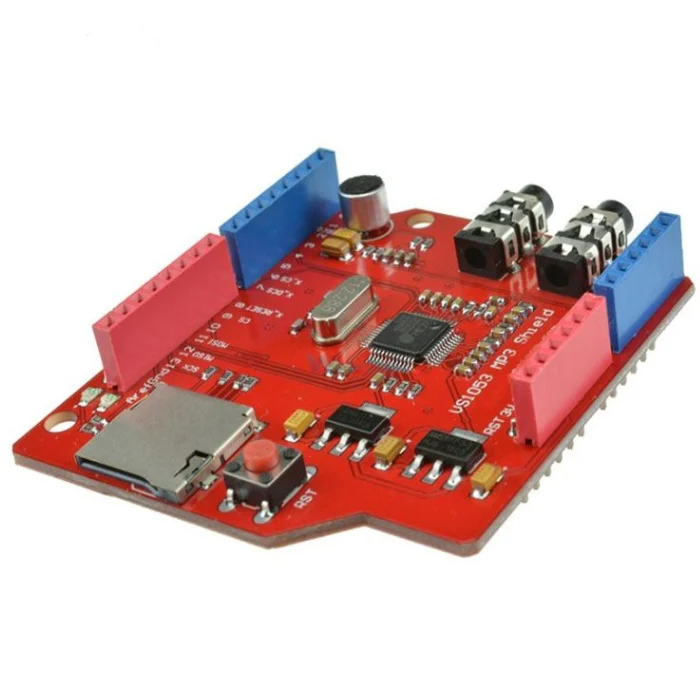

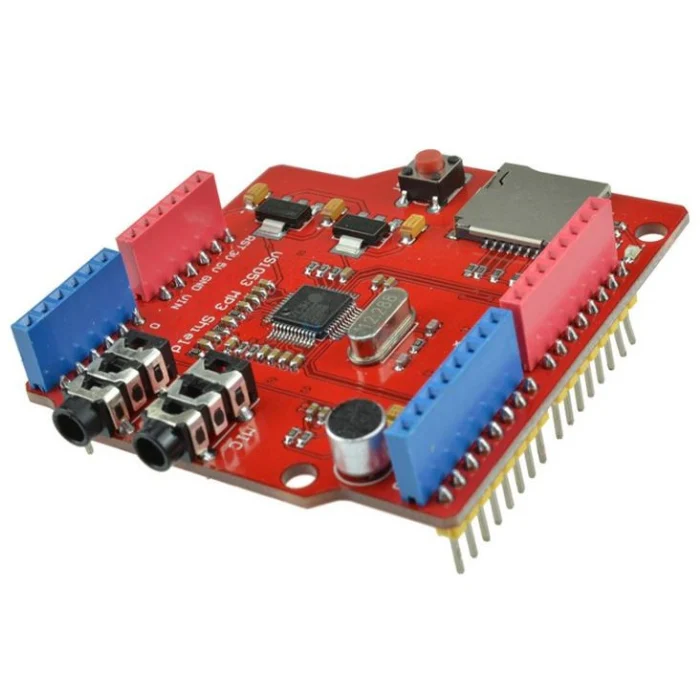

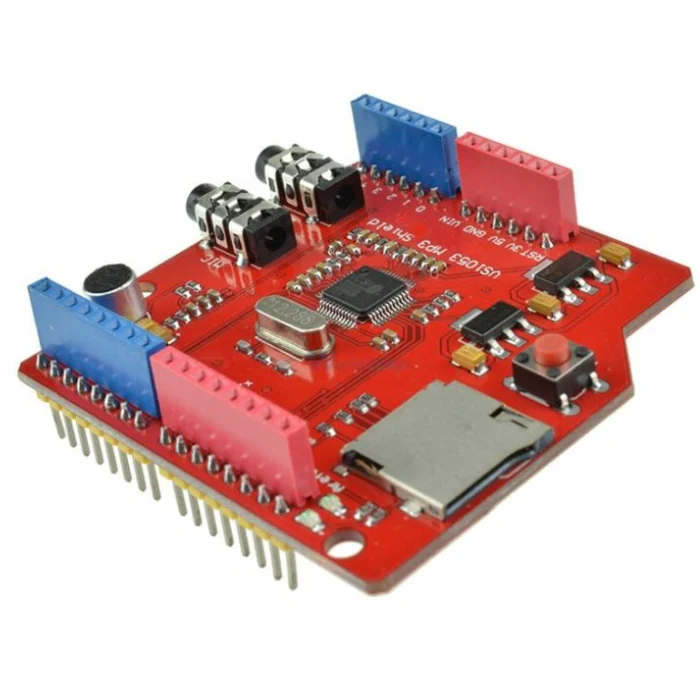

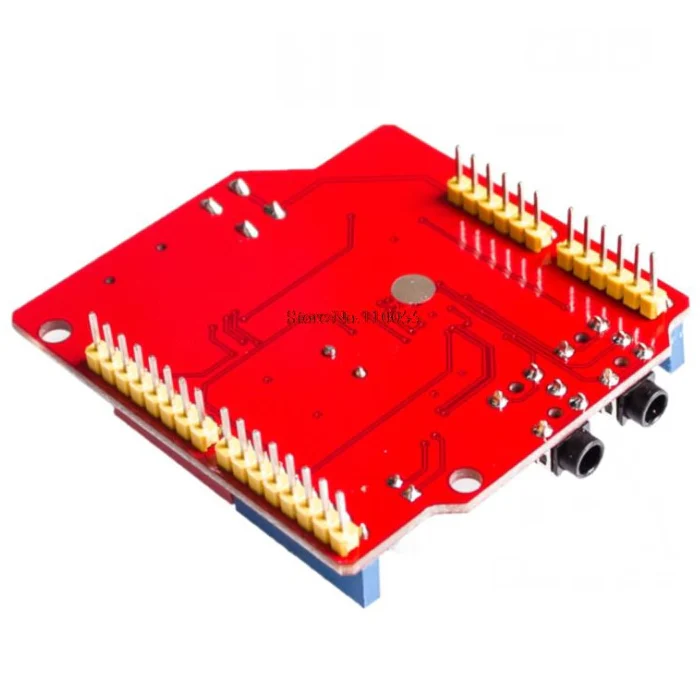

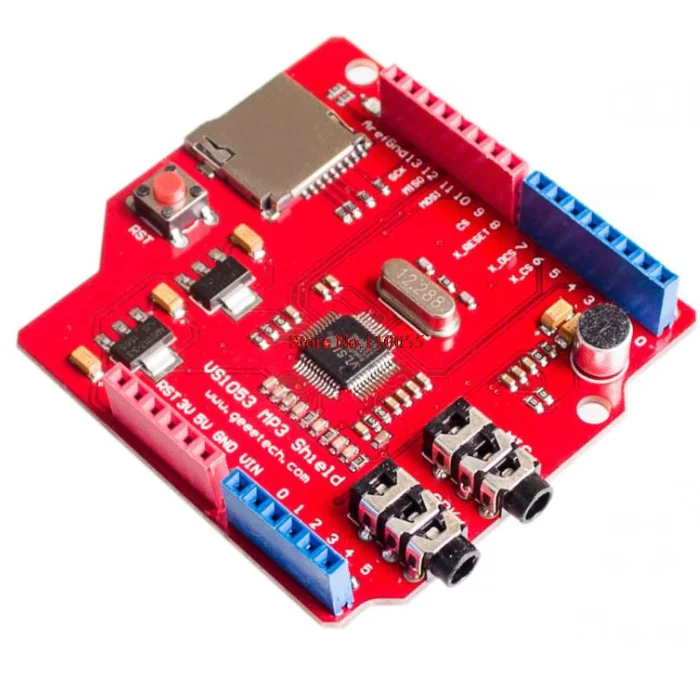

VS1053 MP3 Shield for Arduino

This VS1053 MP3 Shield for Arduino with onboard recording function can record and playback a variety of music formats, and support for OGG encoding real-time recording.

VS1053 is in addition to playing a variety of music formats but also supports the OGG real-time encoding recording. SPI interface, and control signal lines are extracted. The VS1053 MP3 Shield for Arduino has an onboard TF SD card slot to store the record data as well as playback whenever you want, or you can easily transport the recorded MP3 file to any device via SD card.

The MP3 shield module has two separate 3.5 mm jacks for audio Out & Microphone In and Onboard Microphone for recording.  This MP3 shield has a capacitor filter and a 12.288Mhz crystal oscillator and with an onboard power indicator light, it easy to monitor the on/off status of the module. Also, the onboard 3.3V and 2.5V LDO chip AMS-1117 provide 800mA current.  The single power supply onboard for +5VDC provides the constant stabilized voltage to the circuit.

read more : VS1053 MP3 Shield with Arduino Uno

Features:

• SPI interface, the control signal lines are led out
• A headphone and stereo output
• Onboard Microphone for recording
• A line-in input interface
• Separate 3.5 mm Jack for MIC and Speaker
• Onboard Power Indicator 3.3V and 2.8V of LDO chip AMS-1117 on board provides up to 800mA current
• Can play a variety of music formats, support for OGG encoding real-time recording
• TF card slot

Applications:

• DIY MP3 Players: Create custom MP3 players with playback and recording capabilities.
• Sound Effects for Projects: Add sound effects to interactive projects like haunted houses or Halloween costumes.
• Voice Recorders: Build voice recording devices for various applications.
• Audio Playback in Robotics: Integrate audio playback in robotic projects for voice commands or feedback.
• Educational Tools: Develop educational tools that use audio for instructions or feedback.
• Home Automation: Use in-home automation systems to provide audio alerts or notifications.
• Interactive Art Installations: Enhance art installations with soundscapes or interactive audio elements.

Package Includes:

• 1 x VS1053 MP3 Shield for Arduino

VS1053 MP3 Shield Specifications
