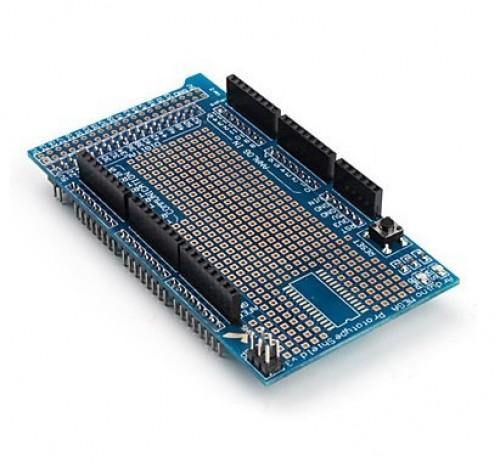

• This is MEGA Prototype Shield V3 for Arduino
• This prototype shield V3 is best suitable for Mega Board compatible with Arduino.

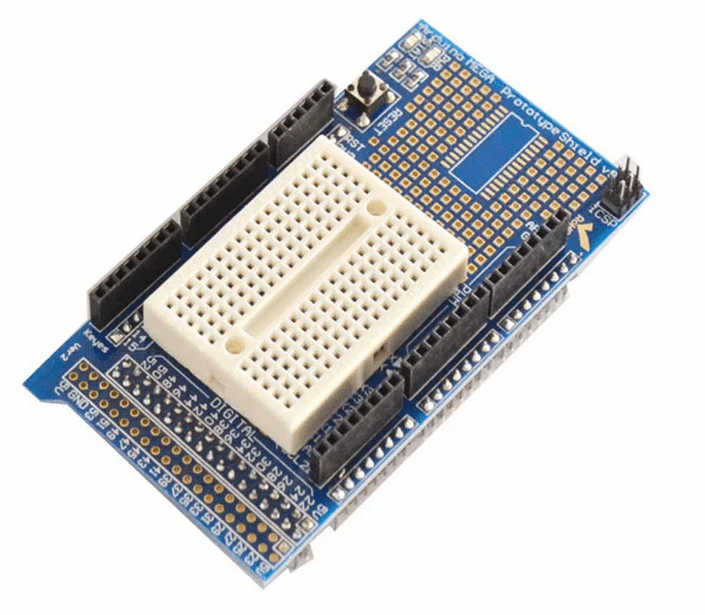

• The MEGA prototype shield with miniature breadboard supports soldering components directly on this shield.
• This shield features a Reset button up top.
• Mainboard aureate quadrate.
• This shield comes with SOP28 SMT components encapsulation.

MEGA Prototype Shield V3

The Arduino-compatible MEGA Prototype Shield V3.0 comes equipped with a breadboard, allowing you to easily construct circuits. The Arduino shield features a gold PCB sink process and a compact mainboard with small golden square pad spacing, making it convenient to solder components onto.

With the Prototyping Shield, designing custom circuits is a breeze. You can either solder components to create a prototyping area for your project or utilize a small breadboard for testing circuit ideas without the need for solder. Additionally, it offers extra connections for all I/O pins and ample space to mount through-hole and surface mount integrated circuits. This makes it a convenient solution for building custom circuits and modules.

The Prototype shield, when paired with a miniature breadboard, measures 2.7 inches in length and 2.1 inches in width. It also includes three screw holes for attaching it to a surface or case. Do note that the distance between digital pins 7 and 8 is 160 mil (12:16”), which is not an even multiple of the 100-mile distance from the other pins.

Package Includes:

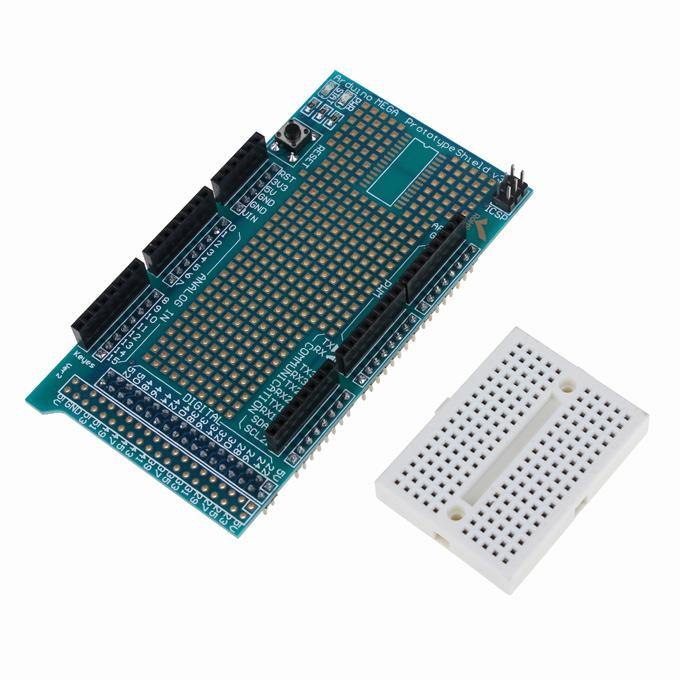

• 1 x MEGA Prototype Shield V3.0 with breadboard
• 1 x Mini Breadboard

MEGA Prototype Shield V3.0 Specifications
